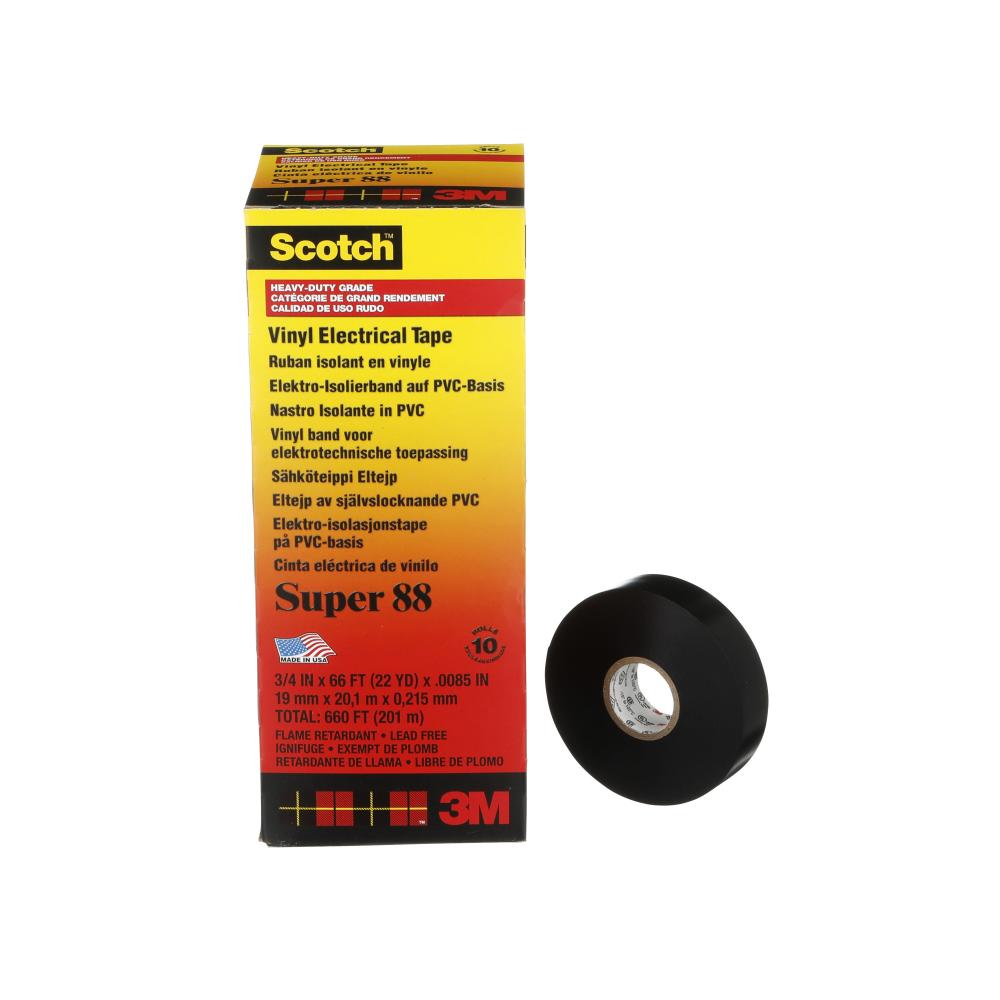

Scotch® Vinyl Electrical Tape Super 88Item is usually in stock, but we'll be in touch if there's a problem
by 3M
About this Item:
The Scotch® Vinyl Electrical Tape Super 88 is an 8.5 mil (0.22 mm) thick, premium-grade, all-weather, vinyl electrical tape that is designed to provide a protective jacket and primary electrical insulation for splices up to 600V. The flame-retardant tape withstands a temperature range of 0°F to 221°F (-18°C to 105°C).The Scotch Vinyl Electrical Tape Super 88 is an abrasion resistant tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and an elastic PVC backing. This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion, and varying weather conditions. It is designed to provide a protective jacket for low and high voltage bus applications. The tape is compatible with solid dielectric cable insulations, as well as epoxy and polyurethane resins. UL Listed, CSA Certified, and RoHS 2002/95/EC.
$
18
31
/ EA
/ 1 EA
- Part Number: 7100126853
- UPC:
- Available quantity online:
- Available quantity in store:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Specifications
Details
Industrial Category:
Industrial Subcategory:
Industrial Subtype:
Electrical Tapes
Adhesive Type:
Rubber
Application:
Electrical Maintenance
Backing (Carrier) Material:
PVC
Color Family:
Black
Elongation at Break:
250.0 %
Family:
Scotch® Vinyl Electrical Tape Super 88
Inner - Customary Height Dimension:
8.938
Inner - Customary Length Dimension:
3.625
Inner - Customary Width Dimension:
3.625
Inner - Unit:
CTNS
Insulation Resistance:
> 10^6 megohms
Maximum Operating Temperature (Celsius):
105.0 °C
Maximum Operating Temperature (Fahrenheit):
220.0 °F
Minimum Operating Temperature (Celsius):
-18.0 °C
Overall Length (Imperial):
66.0 ft
Overall Length (Metric):
20.0 m
Overall Width (Imperial):
0.75 in
Overall Width (Metric):
19.0 mm
Product Color:
Black
Shelf Life:
5.0 yr
Specifications Met:
UL 510
Tape Grade:
Professional
Tensile Strength (Metric):
35.0 N/10mm
Total Tape Thickness without Liner (Imperial):
8.5 mil
Total Tape Thickness without Liner (Metric):
0.22 mm
UPC Code:
00051128571385
Voltage Rating:
600 V
Manufactured By:
3M
Other Details
CSA Certified and RoHS 2002/95/EC
CSA Certified and RoHS 2011/65/EU Compliant
Made of black durable PVC
Operating temperature range of 0° to 220°F (-18° to 105°C) exceeds most commercial-grade specifications
rubber resin adhesive and the PVC backing offers excellent electrical and mechanical protection
The combination of the pressure-sensitive
UL Listed
Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
